6P Rescue Boat

Category

About product

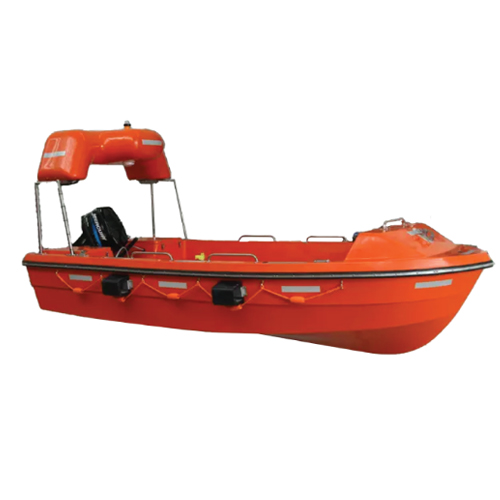

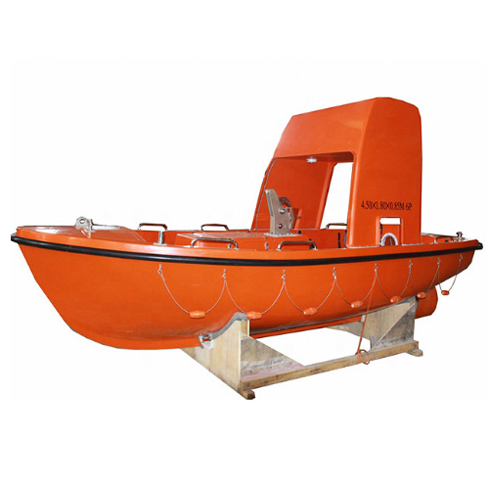

The 6P Rescue Boat is an open lifeboat designed for emergency and rescue operations. It features a 4.5-meter length and can accommodate up to six people, making it suitable for small to medium-sized rescue missions.

As a boat for rescue, the hull of the boat is constructed using fiber-reinforced glass (GRP), which provides excellent strength, durability, and resistance to corrosion. The board sides are made of PVC, ensuring lightweight and robust construction. This combination of materials ensures the emergency boat’s ability to withstand challenging maritime conditions.

The life saving boat incorporates float tanks arranged according to precise design drawings, positioned between the outer and inner plates of the hull. These tanks are filled with foam plastics, creating buoyancy that keeps the emergency boat afloat and prevents sinking even when fully immersed in water.

  • Accommodates up to 6 persons for emergency evacuation and rescue at sea.
  • Swift, maneuverable, and designed for quick response in rescue operations.
  • Equipped with necessary features and equipment for effective rescue missions.

Additional information

Length

4.5m

Beam

1.86m

Mould Depth

0.75m

Capacity

6P

Weight

625kg

Persons Weight

495kg

Engine Power

25HP

Material

GPR

Type

YZ4.5/YZ4.5S

Product Detail

6P Rescue Boat – Life Saving Boat For Sale

In terms of materials, the rescue boat utilizes unsaturated polyester resin, specifically the TM-107M model, to ensure structural integrity and compatibility. Glass fiber woven roving and chopped strand mats are employed to reinforce the hull, enhancing its strength and rigidity. The gel coat resin, TM33, adds a protective layer and enhances the boat’s appearance.

The seating arrangement consists of one seat in the middle, two seats in the stern (including the operator’s position), and two seats in the stem. Additionally, there is provision for a stretcher in the stem area, allowing for the safe transportation of injured individuals during rescue operations.

The Boat For Rescue is designed with a focus on safety, reliability, and efficiency. Its robust construction, buoyancy features, and seating arrangement make it an ideal choice for various emergency situations, ensuring the effective execution of rescue missions at sea.

Engine Starting Instructions Of 6P Boat For Rescue

  • Begin by opening the fuel tank valve to allow fuel to flow into the fuel chamber.
  • Ensure that the oil valve is loosened to allow the fuel pipes to be filled with fuel oil.
  • Move the operating handle to the operation position.
  • Start the engine using the appropriate starting procedure.

The Open Design Of 6 Person Rescue Boat

The open design of 6 person boat for rescue sets it apart from enclosed lifeboats. This type of watercraft features an open deck, devoid of an enclosed cabin or roof. This design choice offers several benefits and considerations.

Firstly, as a life saving boat, the open deck facilitates easy and efficient boarding and disembarking of occupants, particularly in emergency situations where time is of the essence. Without barriers or confined spaces to navigate, individuals can quickly access the rescue boat and evacuate as needed.

Additionally, the absence of an enclosed cabin provides unobstructed visibility for both occupants and rescue personnel. This enhanced visibility enables better situational awareness, allowing for effective coordination of rescue efforts and improved detection of nearby vessels or individuals in distress.

The open lifeboat also offers flexibility and adaptability. The spacious deck can accommodate additional equipment such as stretchers or supplementary life-saving devices, making it versatile for various rescue scenarios.

Rescue Boat VS Lifeboat

A lifeboat and a rescue boat are both types of emergency boats used for saving lives in emergencies at sea, but they serve different purposes and have distinct characteristics. Here are the key differences between these two types of life saving boats.

  • Purpose:
    • A lifeboat is primarily designed to provide a means of evacuation and survival for people in distress at sea. It is typically used during shipwrecks, emergencies, or when abandoning a ship. The primary goal of a lifeboat is to ensure the safety and survival of the occupants until they can be rescued.
    • A rescue boat, on the other hand, is primarily used for actively searching, rescuing, and providing assistance to individuals in distress in the water. The boat for rescue is often deployed by rescue teams or maritime authorities to perform rescue operations, such as retrieving people who have fallen overboard or providing aid during water-related emergencies.
  • Design and Construction:
    • Lifeboats are designed to be self-contained and capable of operating independently for an extended period. They are typically larger, with a higher capacity to accommodate a larger number of people. Lifeboats are built to be sturdy, stable, and capable of withstanding adverse weather conditions.
    • Boats for rescue are generally smaller and more maneuverable compared to lifeboats. They are designed to quickly navigate through the water and access difficult-to-reach areas. Rescue boats often have a more open design, allowing for easier retrieval of individuals from the water.
  • Equipment and Features:
    • Lifeboats are equipped with essential supplies and provisions to sustain the occupants for an extended period, such as food, water, medical supplies, and survival equipment like life jackets, flares, and communication devices. They may also have enclosed cabins or compartments to protect occupants from the elements.
    • Rescue boats are typically equipped with rescue-specific gear, such as lifebuoys, throw ropes, rescue nets, and stretchers. They often have powerful engines for swift maneuvering and may be equipped with specialized equipment like rescue davits or cranes for lifting people out of the water.

6P Rescue Boat Parameter

ModelYZ4.5YZ4.5YZ4.5S
Lifting WaySingle HookDouble HookConnect With 4 Points
Main Dimensions/mm4500*1860*7504500*1860*7504500*1860*750
No. of persons6P6P6P
No-load Weight/kg690690625
Full load Weight/kg118511851120
Internal Floating Bodies/m³1.421.421.42
Release Mechanism SWL/KN404040
Distance Between Hooks/m/3.10/
Tank Capacity/L505050
Speed/kn>6>6>6
Max.towing force/KN1.01.01.0
Engine TypeMERCURYMERCURYMERCURY
Hull MaterialG.R.PG.R.PG.R.P
