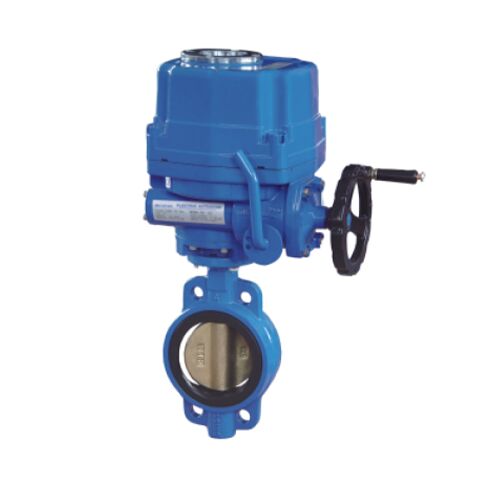

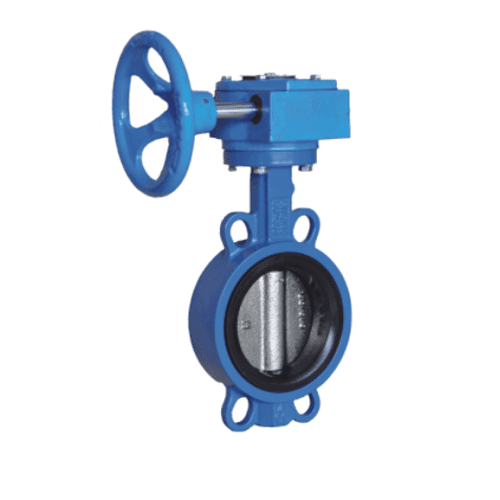

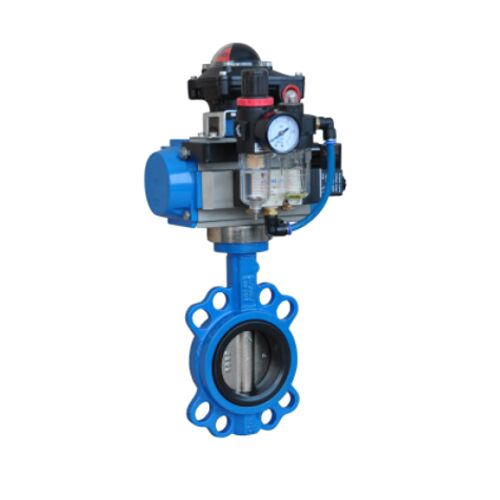

The marine YD series wafer butterfly valve is designed with a universal standard flange connection, making it compatible with various piping systems. The handle of the wafer valve is made of aluminum, which provides durability and ease of operation.
| Pressure | PN10/PN16/150 psi/200 psi |
|---|---|
| Size | DN 32~DN 600 |
| Standard | EN1092 PN6/10/16,ANSI B16.1,JIS 10K |
This type of wafer butterfly valve can be used to control the flow of different mediums in pipes. By selecting appropriate materials for the disc (the part that controls the flow) and the seal seat (the part that provides a tight seal), this flow control valve can be customized to handle specific conditions and environments.
Additionally, the flow control valve features a pinless connection between the disc and stem. This design eliminates the need for a traditional pin connection, which can be prone to wear and leakage. The pinless connection enhances the valve’s reliability and allows it to be used in more demanding conditions.
| Size/mm | Size/inch | A | B | C | D | L | D1 | D2 | Φ1 | ΦK | E | R1(PN10) | R2(PN16) | Φ2 | f | J | X | W*W | Weight/kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 1.5 | 125 | 73 | 33 | 39 | 32 | 110 | 110 | 7 | 65 | 50 | R9.5 | R9.5 | 12.6 | 10 | - | - | 9*9 | 1.8 |
| 65 | 2.5 | 136 | 82 | 46 | 64 | 32 | 145 | 145 | 7 | 65 | 50 | R9.5 | R9.5 | 12.6 | 10 | - | - | 9*9 | 3.3 |
| 100 | 4 | 163 | 106 | 52.07 | 104 | 32 | 180 | 180 | 10 | 90 | 70 | R9.5 | R9.5 | 15.77 | 12 | - | - | 11*11 | 5.2 |
| 125 | 5 | 176 | 128 | 55.5 | 123 | 32 | 210 | 210 | 10 | 90 | 70 | R9.5 | R9.5 | 18.92 | 12 | - | - | 14*14 | 7.5 |
| 200 | 8 | 228 | 170 | 60.58 | 202 | 45 | 295 | 295 | 12 | 125 | 102 | R11.5 | R11.5 | 22.1 | 15 | - | - | 17*17 | 15 |
| 300 | 12 | 292 | 239 | 76.9 | 301 | 45 | 400 | 410 | 12 | 25 | 102 | R11.5 | R14 | 31.6 | 15 | - | - | 22*22 | 35 |
| 400 | 16 | 365 | 297 | - | 389.6 | 51 | 515 | 525 | 18 | 175 | 140 | R14 | R15.5 | 33.15 | 23 | 36.15 | 10 | - | 65 |
| 500 | 20 | 440 | 348 | 130.28 | 492 | 64 | 620 | 650 | 18 | 175 | 140 | R14 | R14 | 41.14 | 27 | 44.12 | 10 | - | 130.5 |
| 600 | 24 | 525 | 467 | 151.36 | 593 | 70 | 725 | 770 | 22 | 210 | 165 | R15.5 | R15.5 | 50.65 | 27 | 54.62 | 16 | - | 190.6 |
