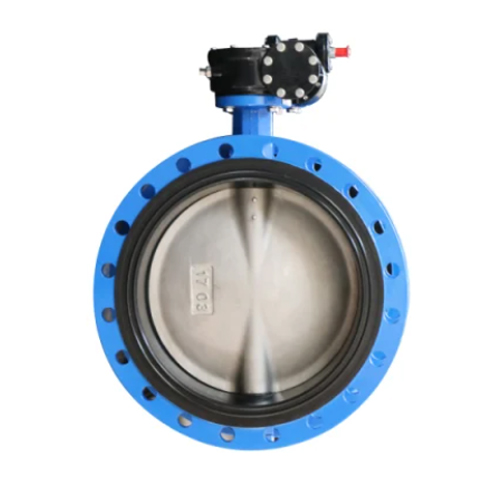

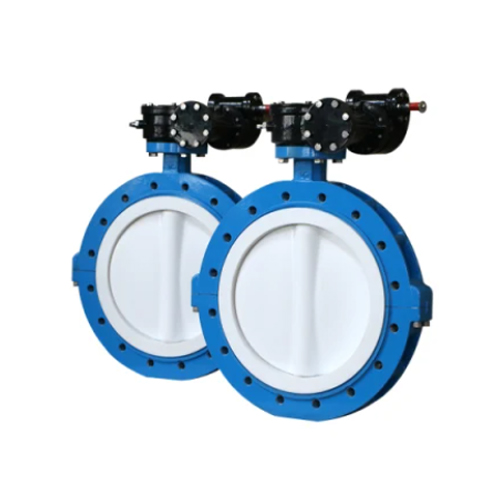

Marine Type U Double Soft Sleeve Flange Butterfly Valve

About product

The Marine Type U Double Flange Soft Sleeve Butterfly Valve is designed to operate at two different working pressures: PN10 (Pressure Nominal 10 bar) and PN16 (Pressure Nominal 16 bar). The valve undergoes testing to ensure its reliability. During the testing process, the valve’s shell is subjected to a pressure that is 1.5 times the rated pressure, while the seat is tested at a pressure that is 1.1 times the rated pressure.

The flanged valve is suitable for a wide range of temperatures, depending on the type of sleeve used. If the valve is equipped with an NBR (Nitrile Butadiene Rubber) sleeve, it can operate within a temperature range of -10°C to 80°C. However, if it is fitted with an EPDM (Ethylene Propylene Diene Monomer) sleeve, it can withstand temperatures from -10°C to 120°C.

In terms of media compatibility, this flanged butterfly valve is designed to handle various substances. It is suitable for use with water, oil, and gas, making it a versatile option for different applications.

Additional information

Standard

EN 593 , MSS SP67 API 609 BS5155

Inspection & Test

API 598 ISO 5208 EN 12266

Face to face

ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202

Material of Seal Surface

Soft Sealed

Working Pressure

Low Pressure (Pn<1.6mpa)

Product Detail

Flanged Valve – Type U Flanged Butterfly Valve

The Marine Type U Double Flange Soft Sleeve Butterfly Valve is manufactured using a variety of materials for its different components. The body of the flanged valve can be made of cast iron or ductile iron, providing strength and durability. The seat of the valve is available in different options such as EPDM, NBR, VITON, and PTFE, allowing for compatibility with various media and temperature ranges.

The disc of the flanged butterfly valve is made from materials such as nickel ductile iron, AI bronze, or stainless steel, providing corrosion resistance and reliable performance. The stem, which controls the movement of the disc, can be constructed using carbon steel or stainless steel, ensuring strength and resistance to wear.

The bushing, used for smooth rotation of the stem, is made of PTFE, a low-friction material that enhances the valve’s operation. The “O” ring, providing a seal between different parts of the flange butterfly valve, is also made of PTFE.

Stainless steel is utilized for the pin and key components, ensuring durability and resistance to corrosion. These materials are carefully selected to meet the requirements of the flanged valve, considering factors such as working pressure, temperature, and compatibility with the media, ensuring reliable and efficient operation.

Parameter Of U Type Flanged Butterfly Valve

marine type u double flange soft sleeve butterfly valve

PN1.6Mpa

Size

A

B

H

Do

C

D

K

d

N-do

4-M

b

D1

D2

N-d1

F

Φ

W

J

Weight/kg

DN400

360

320

60

390

102

580

525

460

12-31

4-M27

28.0

175

140

4-18

22

37.95

10

41.0

102

DN450

400

360

60

441

114

640

585

496

16-31

4-M27

30.0

175

140

4-18

22

42.86

12

45.9

141

DN800

670

560

75

795

190

1025

950

872

20-41

4-M36

43.0

300

254

8-18

30

70.00

20

79.0

420

DN1100

840

740

135

1065

251

1355

1270

1203

28-44

4-M39

53.5

350

298

8-22

34

95.0

25

105.0

1170

DN1400

1017

993

200

1359

279

1685

1590

1495

28-50

8-M45

60.0

415

356

8-33

40

120.00

32

134.0

2650

DN1600

1150

1132

200

1556

318

1930

1820

1696

32-57

8-M52

65.0

475

406

8-40

50

140.00

36

156.0

3140

DN1800

1280

1270

280

1775

356

2130

2020

1893

36-57

8-M52

70.0

560

483

12-40

55

160.00

40

178.0

4890

DN2000

1390

1350

280

1955

406

2345

2230

2105

40-62

8-M56

75.0

560

483

12-40

55

180.00

45

200.0

7120

CWP=200PSI

Size

A

B

H

Do

C

D

K

d

N-do

4-M

b

D1

D2

N-d1

F

Φ

W

J

Weight/kg

16"

360

320

60

390

102

597

539.7

460

12-28.7

4-1

36.6

175

140

4-18

22

37.95

10

41.0

122

24"

520

450

75

592

151

813

749.3

658

16-35.1

4-1 1/4

47.8

210

165

4-22

22

53.98

16

58.0

280

36"

705

630

110

865

203

1168

1085.8

987

28-41.1

4-1 1/2

60.5

300

254

8-18

34

80.00

22

90.0

660

48"

910

790

150

1160

276

1511

1422.4

1302

40-41.1

4-1 1/2

69.9

350

298

8-22

34

105.00

28

117.0

1600

60"

1080

1040

200

1457

381

1854

1758.9

1638

44-47.6

8-1 3/4

79.5

415

356

8-33

40

140.00

36

156.0

3500

66"

1150

1132

200

1610

457

2032

1930.4

1802

44-47.6

8-1 3/4

85.8

475

406

8-40

50

140.00

36

156.0

4000

72"

1280

1270

280

1775

457

2197

2095.5

1893

52-47.6

8-1 3/4

88.9

560

483

12-40

55

150.00

40

178.0

5625
