JIS F7480 Butterfly Valve

About product

The JIS F7480 Butterfly Valve is a type of flange butterfly valve commonly used in industrial applications. When it comes to marine applications, the JIS F7480 Butterfly Valve is a popular choice due to its reliable performance and versatility. This flange butterfly valve is often constructed with materials specifically chosen for their resistance to corrosion and durability. The body of the flange valve is typically made of materials like Cast Iron, Ductile Iron, or Cast Steel, which offer excellent strength and resistance to the harsh marine environment.

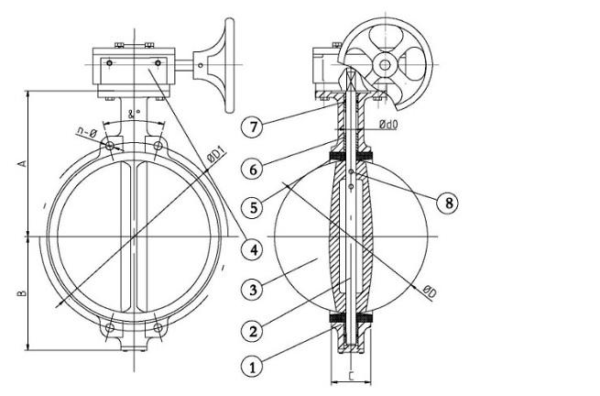

JIS F7480 Butterfly Valve Drawing

marine daily standard center type hydraulic remote control butterfly valve f7480

Additional information

Type

Wafer type & Fange type

Max Working Pressure

5K/10K

Operation Type

Lever or Worm Gear

Size

DN80-DN700

Standard

JIS F7480-1996

Product Detail

Butterfly Valve Components & Material – JIS F7480 Flange Butterfly Valve

The JIS F7480 flange butterfly valve stands as a pinnacle of high performance butterfly valves. Designed to excel in demanding marine environments, each component of this flange valve is meticulously crafted using specific materials. This thoughtful selection ensures optimal performance and durability, allowing the valve to withstand the rigors of harsh marine conditions.

  • Body: The body of the flange valve can be made of cast iron, ductile iron, or cast steel, providing strength, durability, and resistance to pressure and environmental conditions.
  • Disc: The disc, responsible for controlling the flow of the fluid, can be made of various materials depending on specific requirements. Options include Ductile Iron (DI) or WCB (cast carbon steel) with galvanization, stainless steel, or bronze. The choice of material depends on factors such as the type of fluid, temperature, and required corrosion resistance.
  • Stem: The stem connects the handle or actuator to the disc, enabling the flange valve’s opening and closing. Stainless Steel is commonly used for the stem due to its corrosion resistance and mechanical strength.
  • Seat: The seat is the sealing surface between the disc and the valve body. Various materials can be used for the seat, including NBR, EPDM, CR, FKM, VITON, or PTFE. The selection depends on factors such as the fluid type, temperature range, and compatibility with the disc material.
  • Gear: If the flange butterfly valve includes a gear mechanism for manual operation, the gear is typically made of Ductile Iron. This material provides strength and durability to handle the forces involved in operating the valve.
  • O-ring: The O-ring is a sealing element used to prevent leakage between the moving parts of the valve. In the case of the JIS F7480 flange butterfly valve, the O-ring is made of NBR, which offers good resistance to oil, fuel, and other non-polar fluids.
  • Pin: The pin connects the disc to the stem, allowing for rotational movement. Stainless Steel is commonly used for the pin due to its strength and corrosion resistance.

High Performance Butterfly Valves – JIS F7480 Butterfly Valve

The JIS F7480 butterfly valve is a versatile and reliable flange valve designed for marine and industrial applications. It is widely used for precise flow control in fluid management systems. This double flanged type valve is available in various sizes, accommodating different piping requirements.

The flange butterfly valve features a handle and worm gear mechanism, allowing for manual operation. It can be customized to different pressure ratings, such as 5K or 10K, based on the specific application’s requirements.

The valve seat, which provides a reliable sealing surface, is commonly made with rubber (EPDM, NBR) or PTFE materials, ensuring effective sealing and resistance to corrosion.

With its customizable options, including size range, pressure rating, materials, and sealing options, this flange valve offers flexibility and adaptability to suit a variety of applications.

JIS F7480 Butterfly Valve Parameter

DNLHH1DCWater Type Flange Type
JISISOn-dn-d
8064642581212001604-M168-M16
15090763651682852404-M208-M20
2501101144852203953504-M2012-M20
3501201276082785054604-M2016-M20
4501501527253336155654-M2420-M24
5001601527753606706204-M2420-M24
6002001789554307807254-M2720-M27
70022022910094738958404-M2724-M27
