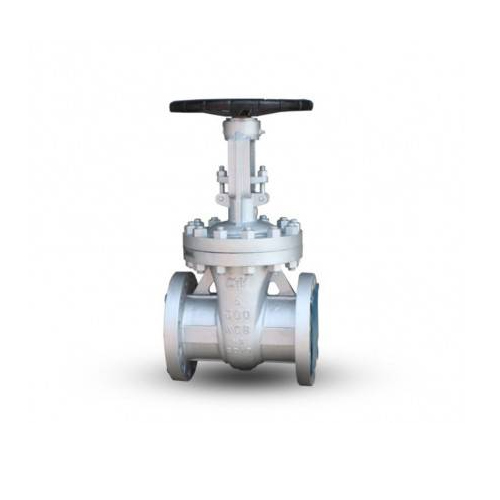

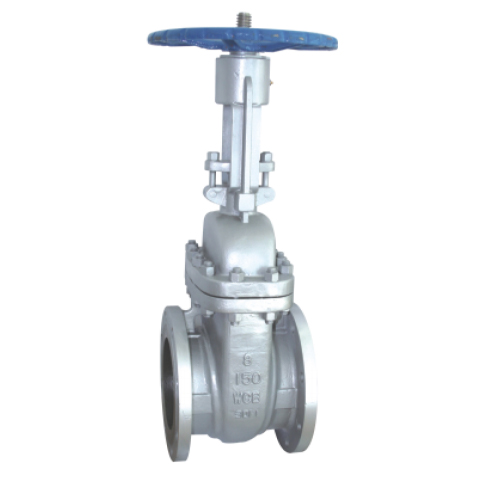

API 600 Marine Gate Valves are a specific type of gate valve designed and manufactured in accordance with the API 600 standard, but tailored specifically for marine applications. These valves are commonly used in marine systems such as ships, offshore platforms, and other marine vessels.
| Standard | API 6D, API 600 |
|---|---|
| Face to face | ANSI B16.10 |
| Flange dimension | ANSI B16.5 |
| Butt welding dimension | ANSI B16.25 |
| Pressure temperature lating | ANSI B16.34 |
| Inspection and test | API 598, API 6D |
| Class | 150lb-600lb |
API 600 Marine Gate Valves utilize a metal gate to control the flow of fluid by opening or closing the flow path. The gate can be either a flexible or solid wedge, depending on the design and application requirements.
The gate, whether flexible or solid, is seated at the bottom of the valve body when the valve is in the closed position. This seating at the bottom of the valve body ensures that the gate forms a reliable seal with the valve seats, preventing fluid from flowing through the valve when it is closed. The seal formed by the gate and seats helps to minimize leakage and ensure positive shut-off.
The flexible wedge design offers some flexibility to accommodate any potential misalignment or deformation of the valve seats. This flexibility allows the wedge to adjust and provide a tight seal against the valve seats, enhancing the sealing performance of the valve.
In contrast, the solid wedge design is rigid and non-flexible, providing a strong and durable seal against the valve seats. The solid wedge is commonly used in applications where precise machining of the valve seats and gate is achievable to ensure a tight and leak-free seal.
| Nominal Pressure | Shell Test | Water Seal Test | Air Seal Test | |||
| Mpa | Lbf/in² | Mpa | Lbf/in² | Mpa | Lbf/in² | |
| 150 | 3.1 | 450 | 2.2 | 315 | 0.5-0.7 | 60-100 |
| 300 | 7.8 | 1125 | 5.6 | 815 | 0.5-0.7 | 60-100 |
| 600 | 15.3 | 2225 | 11.2 | 1630 | 0.5-0.7 | 60-100 |
| 900 | 23.1 | 3350 | 16.8 | 2440 | 0.5-0.7 | 60-100 |
| 1500 | 38.4 | 5575 | 28.1 | 4080 | 0.5-0.7 | 60-100 |
| 2500 | 64.6 | 9367 | 47.4 | 6873 | 0.5-0.7 | 60-100 |
| Body Cover Disc | Stem | Sealing Face | Sealing Shim | Packing | Working Temperature | Suitable Medium |
| WCB | 2Cr13 | 13Cr STL With body material PTFE Nylon | 13Cr Enhanced Flexible 1Cr13 Flexible graphite SFB-2 08 Soft steel F304 F316 F304L F316L | Flesible graphite enhanced flexible graphite SFB/260 SFP/260 PTFE | ≤425 | Water Steam Oil |
| WC1 | 38CrMoAI | ≤450 | ||||
| WC6 | ≤540 | |||||
| WC9 | ≤570 | |||||
| C5 C12 | ≤540 | |||||
| CF8 | F304 | ≤600 | Nitric acid Aceic acid Urea | |||
| CF3 | F316 | |||||
| CF8M | F304L | |||||
| CF3M | F316L |
Zava Marine Corporation is a leading supplier of marine parts and components. With a strong focus on quality and customer satisfaction, we specialize in providing a comprehensive range of high-quality marine equipment and accessories. Our products include deck equipment, ship accessories, and various other essential components needed for smooth maritime operations.
With a global presence, we serve a diverse customer base, including shipbuilders, shipowners, offshore operators, and marine equipment distributors. We are committed to providing exceptional service and tailored solutions to meet our customers’ unique needs.
Zava Marine offers a comprehensive range of certifications for marine parts in accordance with international standards and regulations. These certifications include those provided by renowned marine classification societies such as Lloyd’s Register (LR), Bureau Veritas (BV), China Classification Society (CCS), Registro Italiano Navale (RINA), American Bureau of Shipping (ABS), Nippon Kaiji Kyokai (NK), and Det Norske Veritas – Germanischer Lloyd (DNV-GL). By collaborating with these esteemed societies, Zava Marine ensures that our certified marine parts meet the highest standards of safety, quality, and performance, instilling confidence in our reliability and compliance within the maritime industry.
The warranty provided by Zava Marine covers defects in materials and workmanship for a period of two years from the date of purchase. During this warranty period, if any marine parts purchased from Zava Marine exhibit issues or failures resulting from manufacturing defects or faulty materials, Zava Marine will take responsibility for repair or replacement of the affected parts.
Zava Marine has recently opened new molds for European and North American clients, utilizing materials such as metal, ABS, PVC, and more. These successful mold opening projects allow us to provide customized marine parts and components that meet the specific requirements of our clients in these regions.
Typically, Zava Marine can ship samples within 7 days once the product drawing has been mutually confirmed by both parties. This efficient process ensures that customers can receive samples promptly, allowing them to assess the quality and suitability of the products.
Zava Marine frequently utilizes a wide range of materials in our projects. These materials include aluminum, stainless steel, carbon steel, copper, plastics, titanium, and PEEK (Polyether Ether Ketone). Each material offers unique properties and characteristics suitable for various marine applications.
Yes, we provide customization services for marine parts. We understand that every project and application may have unique requirements, and we are committed to delivering tailored solutions. By collaborating closely with our clients, we can adapt our products to specific specifications, ensuring optimal fit, performance, and compatibility. Whether it’s modifying existing designs or creating entirely new parts, our customization services cater to the diverse needs of the maritime industry.
Absolutely! We offer product design and development services to support our clients’ needs. Our experienced team of engineers and designers can collaborate with clients from concept development to final product realization. By leveraging our expertise in marine engineering and design, we can provide valuable insights and innovative solutions. Whether it’s optimizing existing designs or creating entirely new products, we are equipped to assist clients in bringing their ideas to life efficiently and effectively.
