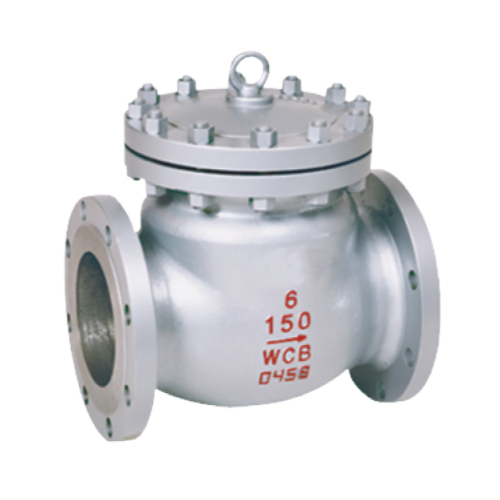

ANSI Marine Swing Check Valve

About product

The ANSI Marine Swing Check Valves are robust cast steel valves designed to control flow in marine applications. These valves feature a swinging disc that hinges or trunnions, blocking the flow in one direction to prevent reverse flow or allowing forward flow when off the seat. The seat opening can be perpendicular to the centerline or at an angle. Swing check valves are commonly used for larger applications.

ANSI Check Valve Drawing

ansi marine swing check valve

Additional information


ANSI B16.34

Face to face

ANSI B 16.10

Flange Dimension

ANSI B 16.15

Pressure Temperature Lating

ANSI B 16.34

Inspection and test

API 598

Product Detail

These ANSI Check Valves adhere to American Standards such as API 6D, ASME B16.34, ASME B16.5, and ASME B16.10, ensuring compliance with industry requirements. This guarantees their quality, reliability, and compatibility with other components in the marine system.

ANSI Marine Swing Check Valve Drawing

ansi marine swing check valve

ANSI Marine Swing Check Valve Parameter

Nominal Pressure150300600900
Shell Test Mpa3.17.815.323.1
Water Seal TestMpa2.25.611.216.8
Air Seal TestMpa0.5-0.70.5-0.70.5-0.70.5-0.7
