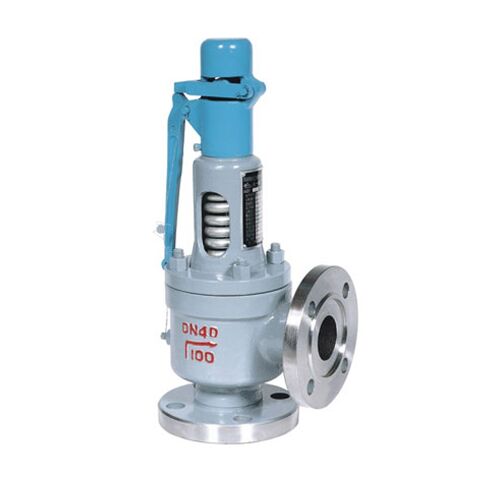

Marine Spring Loaded Full Bore Type Lever Safety Valve

About product

The marine spring-loaded full bore type lever safety valve is specifically designed for equipment and pipelines handling mediums such as steam, air, and other fluids with working temperatures below 400℃. It serves as an additional pressure protection device, ensuring the safety and integrity of marine systems. The valve’s flange connecting dimensions comply with Standard series one of ISO, JIS, and GB, facilitating easy integration into various marine applications while meeting recognized international standards.

Marine Safety Valve Drawing

marine spring loaded full bore type lever safety valve

Additional information


Angle Type






Air, gas, water,fuel


up to 2500


≤400 °C

Product Detail

The marine spring-loaded full bore type lever safety valve is designed to be installed vertically, preferably directly on the adaptor of the container or pipe. The inside diameter of the adaptor should not be smaller than that of the valve’s inlet pipe.

To prevent thermal stress caused by the expansion of the discharge pipe, an expansion joint should be incorporated in the exit path of the safety valve. The inside diameter of the discharge pipe should be larger than the diameter of the valve’s exit way. The discharge pipe should be as short as possible without any bends, and its weight should not be supported by the safety valve. Both the discharge pipe and expansion joint should be securely fastened to the structure. The distance between the centerlines of the discharge pipe and the safety valve body should be minimized. Each safety valve should have a separate water drainage pipe.

The muffler’s exit path should have sufficient area to prevent back pressure that could impact the valve’s discharge capability. Ensuring proper muffler design and sizing is important for maintaining optimal valve performance.

Marine Spring Loaded Full Bore Type Lever Safety Valve Parameter

Nominal DiameterdoDKgg1bff1Z-ΦdDN'D1k1g2g'b1f'f1'Z1-Φd1LL1H
