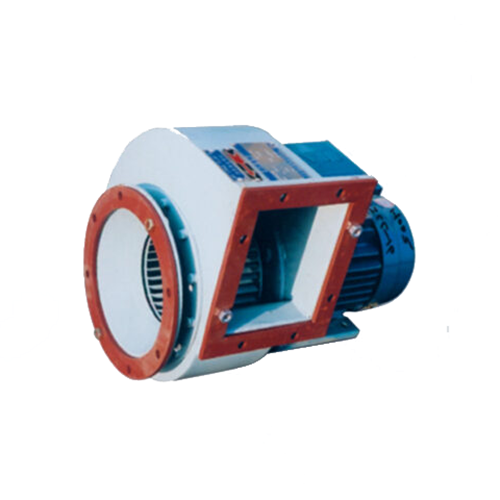

JCL(CLQ) Series Marine Centrifugal Fan

Category

About product

JCL series ventilator can carry handle air including ocean air containing salt mist as well as corrosive air such as oi l misty air.

Feature:

  • Small Size and Low Weigh
  • Low Noise and Low Vibration
  • Good Corrosion Resistance
  • Good Airtightness
  • High Performance for Anti-Wobble, Anti-Vibration and Anti-Impact

Additional information

Ambient temperatures:

-25C- +50C

Relative humidity of the air:

≤95%

Cyclicalvacillation

22.5*~45° (vacillation cycle 5~ 10S)

Sustained horizontal iting:

15°

Sustained vertical iting:

10°

Vibration:

existence

Shock:

existence

Pressure

200~2120Pa

Frequency

50/60Hz

Product Detail

The JCL series ventilator is capable of efficiently handling air conditions that include salt mist from ocean air and corrosive air like oil mist. It provides reliable and effective ventilation for environments with challenging air compositions.

The JCL series ventilator is suitable for ventilation needs on civilian vessels and even land-based locations requiring cooling. Its versatile design allows for effective air circulation and cooling in various environments, ensuring optimal comfort and functionality.

With marine-use three-phase asynchronous motors operating at 380V 50HZ or 440V 60HZ. They can also be paired with Y-J series three-phase induction motors specifically designed for warships, ensuring reliable and efficient performance in marine applications.

JCL series marine centrifugal fan is one of our major products. The diameter of the impeller is 150-580mm, capacity 3 5000-21000m /h. The impeller is made of aluminum alloy.

JCL(CLQ) Series Marine Centrifugal Fan Structure

The impeller of the ventilator is constructed with aluminum alloys and is meticulously riveted. It undergoes meticulous static and dynamic balance adjustment processes to ensure optimal performance and smooth operation.

The casing and air-inlet of the ventilator are made of durable steel and meticulously soldered together to form a robust and airtight structure. This construction ensures reliable and efficient airflow, preventing any air leakage or loss during operation.

The ventilators can be configured to rotate either clockwise or counterclockwise. Left rotation, indicated by the marking “L,” refers to the counterclockwise rotation of the impeller when viewed from the front perspective of the motor. This clear designation ensures proper identification of the rotation direction for seamless integration and effective operation of the ventilators.

JCL(CLQ) Series Marine Centrifugal Fan Model Explanation

16–Impeller diameter is 16cm

Q–Forward

L–Centrifugal fan

C–Marine

JCL series Ventilator Parameter

ModelFlow Rate (m³/h)Total Pressure/PaStatic Pressure/PaSpeed (r/min)Motor
Freq/HzPower/kwModel
JCL-153005705452920500.75Y801-2-H
800540390
360820780350060
1200640360
JCL-3027006605601460501.5Y90L-4-H
4400540330
18004203501160600.75Y90S-6-H
2600340210
320095080017502.2Y112M-2-H
5250780470
JCL-5816000120010209705015Y180L-6-H
19000980640
140006805708706011Y180L-8-H
16500550360
1900012001020116018.5Y200L1-6-H
