Marine Center-Pivoted Pneumatic Butterfly Valve

About product

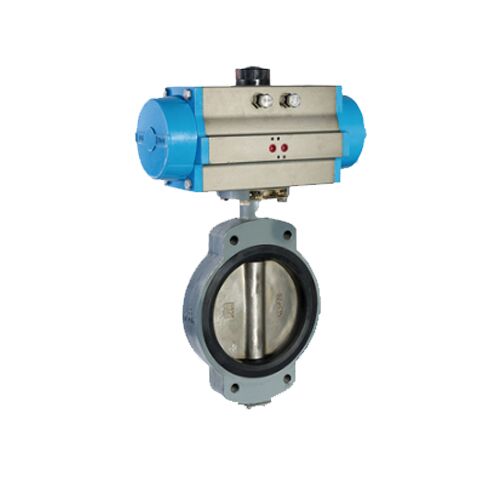

Marine Center-Pivoted Pneumatic Butterfly Valve is a reliable and efficient solution for controlling liquid flow in marine environments. Whether you need to regulate fluid streams in challenging marine conditions or require remote operation capabilities, this pneumatic butterfly valve is designed to meet your demanding requirements.

Pneumatic Butterfly Valve Drawing

j3vo5b50f2359 (1) 拷贝

Additional information




Q Type


Cast iron or carbon steel

Product Detail

Air Actuated Valve For Sale – Center-Pivoted Pneumatic Butterfly Valve

The Marine Center-Pivoted Pneumatic Butterfly Valve, also known as air actuated butterfly valve,  is a remarkable air actuated valve designed for various applications. Equipped with a pneumatic actuator, this pneumatic butterfly valve allows for automated control, providing convenience and precision in adjusting the valve position and flow rate. Its proficient design and high-quality construction ensure dependable performance, even in harsh marine conditions.

The flange connection dimensions of the pneumatic butterfly valve adhere to industry standards such as GB/T 2501, CB/T 4196, JIS B 2220, JIS B 2239, and JIS B 2240. This ensures compatibility and ease of installation in marine pipelines. Additionally, the valve’s structural length complies with GB/T 12221 and JIS B 2002 specifications for marine center type wafer and flange butterfly valves, further emphasizing its suitability for marine applications.

Engineered specifically for ship pipelines, this air actuated butterfly valve meets the necessary criteria for design, manufacturing, and acceptance of center type butterfly valves in marine environments. With its reliable performance and adherence to industry standards, the Marine Center-Pivoted Pneumatic Butterfly Valve is a trusted choice for marine applications, offering efficient and precise control over air flow in ship pipelines.

Key features of Q Type Air Actuated Butterfly Valve:

  • Compact and lightweight, easy to assemble, disassemble, and maintain. Can be installed in any position.
  • Simple and compact structure, low operating torque, quick 90° rotation for opening.
  • Linear flow characteristic, excellent regulating performance.
  • The connection between the butterfly plate and the air actuated valve stem adopts a pinless structure, eliminating potential internal leakage points.
  • The outer circumference of the butterfly plate is designed with a spherical shape, enhancing sealing performance and extending marine valve lifespan. It maintains zero leakage even after more than 50,000 pressure-cycling operations.
  • The sealing element is replaceable, providing reliable bidirectional sealing.
  • The butterfly plate can be coated with a layer of nylon or polytetrafluoroethylene (PTFE) based on user requirements, further enhancing its performance.

Parameter Of Air Actuated Valve – Q Type Pneumatic Butterfly Valve

TypeNominal Pressure/mpaNominal Pressure/mm
Marine Center-Pivoted Pneumatic Butterfly Valve Q Type1.050
