Fax Series Explosion-Proof Axial Flow Fan For Ship

Category

About product

FAX Marine Explosion-Proof Axial Flow Fans are specialized ventilation systems designed for use in marine environments where there is a risk of explosive atmospheres.

These marine ventilation fans are specifically engineered to ensure the safe and efficient circulation of air on ships, offshore platforms, and other marine facilities.

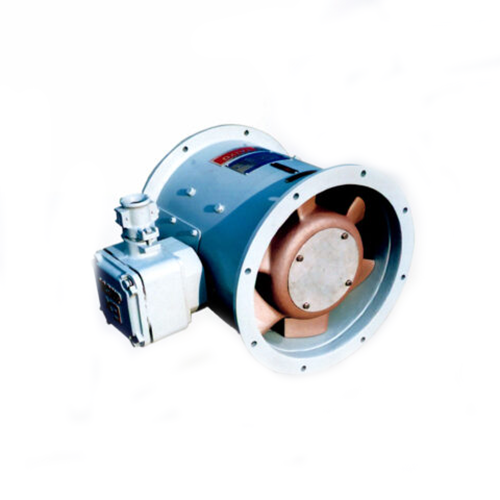

fax marine explosion proof axial flow fans

Additional information

Types

deck, piping, separate cabins

Standard

GB1180

Certification

ABS, CCS, BV, DNV, GL.etc

Product Detail

Fax series explosion-proof axial flow fan is specifically designed and manufactured for marine applications, adhering to the standards set forth in GB11800 “Marine Explosion-Proof Axial Flow Fans,” GB3836-2000 “Electrical apparatus for explosive atmospheres,” and “The Manufacture Rules of Sea-going Steel Ships.”

Fax Series Marine Ventilation Fans Structure

The fax series explosion-proof axial flow fan is available in three structural types: Type I (deck type), Type II (piping type), and Type III (separate cabins type), all designed to be spark-free for enhanced safety.

Type I axial flow fans feature a hood and an explosion-proof motor installed on the top of the machine frame. The frame is surrounded by a stainless steel wire mesh guard with four openings per square centimeter. These marine ventilation fans are vertically fixed on the deck and can be used for air supply or extraction.

Type II axial flow fans do not have a hood and come with a built-in explosion-proof motor mounted on the housing using downstream guide vanes. They can be installed vertically or horizontally, including on the deck, and are suitable for pumping or sending air.

Type III fans offer a separate cabin structure, customized based on customer requirements. The fan and motor are placed in different cabins and connected through a driving device, sealed box, and two pairs of flexible couplings. This type is primarily used for drawing out noxious air from dangerous compartments. When viewed from the motor side, the impeller should rotate clockwise.

Fax Series Marine Explosion-Proof Axial Flow Fan Parameter

fax marine explosion proof axial flow fans

Type

Power/kw

Speed(r/min)

D1/mm

D2/mm

D3/mm

L/mm

n

d/mm

FAX-27-1

0.25

3500

270

340

370

8

12

FAX-30-1

0.75

3500

300

370

400

400

8

12

FAX-35-1

0.55

1750

350

420

450

400

8

12

FAX-35-2

0.75

3500

350

420

450

400

8

12

FAX-40-2

0.55

1750

400

470

500

400

12

12

FAX-45-1

0.55

1750

450

525

560

420

12

12

FAX-45-2

2.2

3500

450

525

560

420

12

12

FAX-45-4

0.75

1750

450

525

560

420

12

12

FAX-50-1

0.75

1750

500

580

620

450

12

15

FAX-50-2

1.5

1750

500

580

620

450

12

15

FAX-55-1

1.5

1750

550

630

670

450

12

15

FAX-55-2

2.2

1750

600

680

720

450

12

15

FAX-60-1

2.2

1750

600

680

720

450

12

15

FAX-65-1

4

1750

650

730

770

500

12

15
