Marine Bolt Type Anchor Shackle

Category

About product

The bolt type anchor shackle is a reliable and high-quality shackle that meets U.S. Fed. Spec. RR-C-271D, TYPE 4A, GRADE A, CLASS 2, and ASME B30.26 standards. It is stamped with size, Working Load Limit (WLL), and trace code, ensuring easy identification and compliance with safety regulations.

Available in a wide range of sizes, from 3/16” to 2 1/2”, this anchor shackle offers versatility to suit various applications. Capacities range from 1/3 ton to 55 tons, providing ample strength for different lifting and rigging needs.

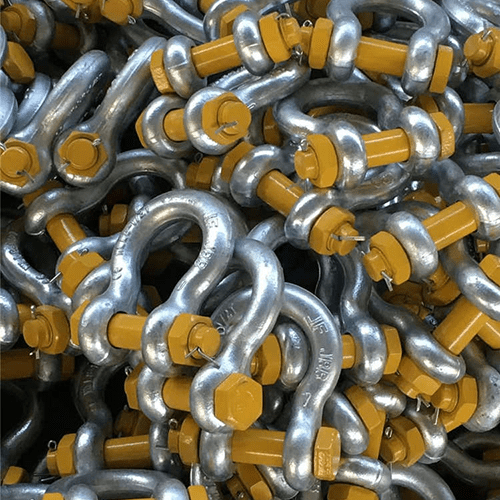

bolt type anchor shackle

Additional information

Material

Stainless steel

Grade

A

Class

2

Safety Factor

6:1

Product Detail

What Is A Shackle On An Anchor?

A shackle on an anchor refers to a specific type of connecting device used to attach the ship anchor to the anchor chain or anchor line. It is a metal link with a curved or U-shaped design, typically made of high-strength materials such as steel or stainless steel.

The marine shackles serve as a critical component in the anchoring system, providing a secure and reliable connection between the anchor and the chain or line. It allows for easy attachment and detachment, facilitating the deployment and retrieval of the anchor.

The design of an anchor shackle typically includes a threaded pin or bolt that passes through the openings or eyes on the anchor and the chain or line. This pin or bolt is then secured with a nut or cotter pin to ensure a tight and stable connection.

Marine shackles used on anchors are often designed to withstand high loads and harsh marine conditions. They are typically manufactured to meet specific standards and requirements to ensure their strength, durability, and resistance to corrosion.

Bolt Type Anchor Shackle – Marine Rigging Shackle

The bolt type anchor shackle, also known as a bow shackle, is a versatile component that finds application in both lifting and rigging scenarios. It is particularly well-suited for marine rigging operations.

As a marine rigging shackle, the bow shackle serves a critical role in anchoring operations. Designed specifically for this purpose, the bow shackle is a reliable and versatile tool that ensures the safety and stability of marine vessels and structures. The bow shackle’s distinctive bow shape sets it apart from other types of marine shackles. This design allows for easy attachment and detachment of rigging components, making it particularly well-suited for anchoring applications. With a removable bolt or pin securing its ends, the bow shackle provides a secure and efficient connection point. When selecting a marine rigging shackle, careful consideration should be given to factors such as load capacity, material strength, and compliance with industry standards.

Choosing Bow Shackle From Zava Marine

Elevate your anchoring capabilities with our premium bolt type anchor shackles. Crafted from high-grade 316-NM stainless steel, these shackles offer unparalleled strength and longevity. Featuring an oversize bolt, they ensure secure and dependable anchor connections in any marine setting. Designed specifically for saltwater applications, our marine shackles are your trusted companion for enduring performance and peace of mind on the water.

One of its standout features is the hot dip galvanized finish, which provides superior corrosion resistance. This ensures the longevity and durability of the shackle, even in harsh and corrosive environments. The hot dip galvanization process creates a protective coating that shields the anchor shackle from rust, extending its lifespan and maintaining its performance.

Anchor Shackle Size Chart – Bolt Type Marine Shackles

ItemWLLABCDEF
1/4" Bolt Type Anchor Shackle0.501/45/161.140.500.670.77
7/16" Bolt Type Anchor Shackle1.507/161/21.720.751.031.12
5/8" Bolt Type Anchor Shackle3.255/83/42.381.061.581.68
7/8" Bolt Type Anchor Shackle6.507/813.331.442.092.27
1-1/8" Bolt Type Anchor Shackle9.501-1/81-1/44.211.892.722.91
1-3/8" Bolt Type Anchor Shackle13.501-3/81-1/25.252.513.323.62
1-3/4" Bolt Type Anchor Shackle25.001-3/427.003.074.244.65
2" Bolt Type Anchor Shackle35.0022-1/47.853.255.055.77
Know Who We Are

About our company

Zava Marine Corporation is a leading supplier of marine parts and components. With a strong focus on quality and customer satisfaction, we specialize in providing a comprehensive range of high-quality marine equipment and accessories. Our products include deck equipment, ship accessories, and various other essential components needed for smooth maritime operations.

With a global presence, we serve a diverse customer base, including shipbuilders, shipowners, offshore operators, and marine equipment distributors. We are committed to providing exceptional service and tailored solutions to meet our customers’ unique needs.

FAQ

Zava Marine offers a comprehensive range of certifications for marine parts in accordance with international standards and regulations. These certifications include those provided by renowned marine classification societies such as Lloyd’s Register (LR), Bureau Veritas (BV), China Classification Society (CCS), Registro Italiano Navale (RINA), American Bureau of Shipping (ABS), Nippon Kaiji Kyokai (NK), and Det Norske Veritas – Germanischer Lloyd (DNV-GL). By collaborating with these esteemed societies, Zava Marine ensures that our certified marine parts meet the highest standards of safety, quality, and performance, instilling confidence in our reliability and compliance within the maritime industry.

The warranty provided by Zava Marine covers defects in materials and workmanship for a period of two years from the date of purchase. During this warranty period, if any marine parts purchased from Zava Marine exhibit issues or failures resulting from manufacturing defects or faulty materials, Zava Marine will take responsibility for repair or replacement of the affected parts.

Zava Marine has recently opened new molds for European and North American clients, utilizing materials such as metal, ABS, PVC, and more. These successful mold opening projects allow us to provide customized marine parts and components that meet the specific requirements of our clients in these regions.

Typically, Zava Marine can ship samples within 7 days once the product drawing has been mutually confirmed by both parties. This efficient process ensures that customers can receive samples promptly, allowing them to assess the quality and suitability of the products.

Zava Marine frequently utilizes a wide range of materials in our projects. These materials include aluminum, stainless steel, carbon steel, copper, plastics, titanium, and PEEK (Polyether Ether Ketone). Each material offers unique properties and characteristics suitable for various marine applications.

Yes, we provide customization services for marine parts. We understand that every project and application may have unique requirements, and we are committed to delivering tailored solutions. By collaborating closely with our clients, we can adapt our products to specific specifications, ensuring optimal fit, performance, and compatibility. Whether it’s modifying existing designs or creating entirely new parts, our customization services cater to the diverse needs of the maritime industry.

Absolutely! We offer product design and development services to support our clients’ needs. Our experienced team of engineers and designers can collaborate with clients from concept development to final product realization. By leveraging our expertise in marine engineering and design, we can provide valuable insights and innovative solutions. Whether it’s optimizing existing designs or creating entirely new products, we are equipped to assist clients in bringing their ideas to life efficiently and effectively.
