Marine dredging possesses a leading situation in maintaining waterways and ensuring marine safety. Marine dredging operations use specific equipment and methods to eliminate the sediment and debris in the seabeds efficiently. Meanwhile, it is vital for the successful dredging projects worldwide to learn about which facilities and approaches are needed for ship dredging service.
What Is Marine Dredging?
Marine dredging is a process of cleaning sediments, fragments, or any other materials at the bottom of rivers, lakes, canals, or even oceans. The process is beneficial for several factors like these:
Maintaining Navigational Channels: Dredging ensures that waterways are deep enough for ships to navigate safely. Sediment buildup can hinder navigation and pose risks to vessels.
Flood Control: Ocean dredging projects help to prevent floods by increasing the capability of waters to accommodate the extra ones. Otherwise, they can eliminate the sediments and other useless things to refine waters and lower the risk of flood.
Environmental Remediation: Dredging is also employed to clean up polluted sediments, removing contaminants and restoring the ecological balance of water bodies.
Harbor and Port Maintenance: Ports and harbors require regular dredging to maintain adequate water depths for ships to dock and unload cargo efficiently.

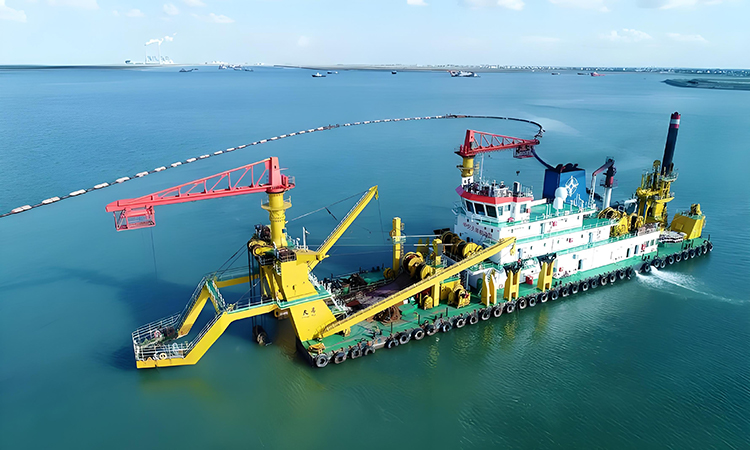

Ship dredging services need to use specific equipment like dredgers, pumps, and pipelines to excavate, transport, and handle dredging materials. According to the prominent requirements of projects, the operation will make use of different kinds of dredgers. For example, some common types are cutter suction dredgers, trailing suction hopper dredgers, and backhoe dredgers.
Executing Marine Dredging Operations
In marine dredging works, dredgers are positioned near the water or under the sea. They are equipped with rotating cutter bars. Those blades are designed to loosen sediments at the bottom of seas because of their sharpness. Subsequently, sinking pumps suction the floating materials and transport them. Then, disposal barges or dumps scows convey the extracted materials to the designated places for disposal.
The process is a significant part of maintaining dredging. It includes the regular elimination of sediments to avoid blocking in the waterways. In the areas with frequent tidal activities, the maintenance is obviously crucial. It cleans sediments and maintains the proper depth of navigation. Its purpose is to guarantee the sustainable usability of water.
In some regions, like the Lowlands of the Netherlands and Flanders are possible to be affected by sediments. So, it is essential to do the regular dredging maintenance. Ocean dredging operations are essential for keeping the water’s function and ecological balance in the world by the excellent combination of excavation, materials transportation, and proper disposal.
Types of Marine Dredging Techniques
Dredging involves excavating soil from underwater surfaces and extracting it using either vacuum or suction methods. Despite modern technological advances, the fundamental methods of dredging have remained consistent since the late 1800s. There are three primary types of dredges based on how debris is extracted.
Mechanical Dredging

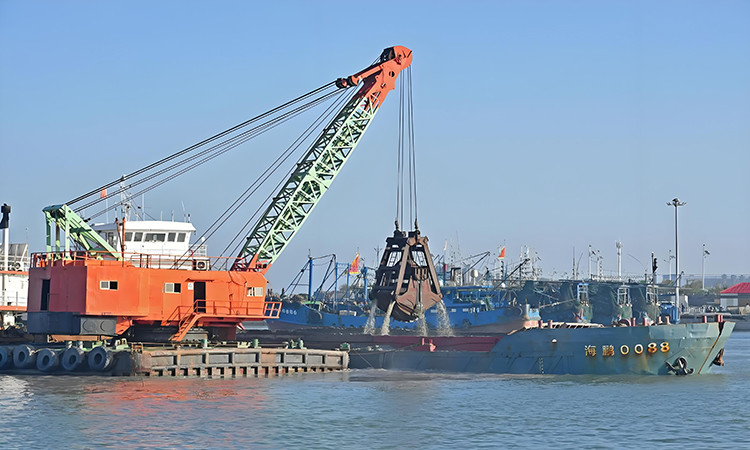

Mechanical dredging entails using tools like buckets and grabs mounted on a large barge to pick up sediments, which are then deposited in a waiting barge until the solids settle. Common varieties include Dipper Dredges and clamshell dredges, named after the scooping buckets they employ. Typically carried out near shorelines, mechanical dredging removes sediment from land or shorelines.
The dredged material can be transferred to nearby land, water, or a dedicated barge for transportation. Onshore mechanical dredging is limited to shoreline areas, while barge-based operations are more versatile and effective near structures like docks and piers. This method can handle hard compacted sediments efficiently, with minimal water carryover compared to hydraulic dredging.
Hydraulic Dredging
In hydraulic dredging, centrifugal pumps are used to remove sediment from the dredging site. The material is sucked into a pipe, mixed with water to form a slurry, facilitating transfer by the pump. Booster pumps may be used to convey sediments to shore through larger ships, maintaining a consistent production rate. Hydraulic dredging eliminates the need for additional transportation equipment, reducing costs and energy consumption while improving efficiency and safety.
Hydrodynamic Dredging
Hydrodynamic dredging is primarily employed for maintaining channel, port, and harbor depths. While not ideal for initial dredging of new sites, it is essential for ongoing maintenance to ensure safe navigation. This method utilizes water injection technology, where pressurized pumps power nozzles attached to a horizontal jet bar to fluidize sediments on the water bed. The loosened sediment is carried by natural currents to deeper areas, making this technique cost-effective and environmentally friendly compared to other methods.
Equipment and Dredging Hose Types in Various Marine Dredging Methods
In marine dredging, operators make use of diverse equipment based on the approaches they adopt.
Mechanical Dredging Equipment:
In mechanical dredging, Dipper Dredges and Clamshell Dredges are commonly used for excavation, with barges serving as stable platforms for equipment and material transport. The ocean dredging hoses in mechanical dredging are typically made of durable materials like rubber, often reinforced for strength. Suction hoses draw in sediment and water mixtures, while discharge hoses transport excavated material to disposal areas.
Hydraulic Dredging Equipment:
Hydraulic dredging operations rely on centrifugal pumps to create suction for drawing in sediment and water, forming a slurry. Booster pumps help maintain a consistent flow rate over longer distances, with pipelines transporting the slurry to disposal areas. The dredging hoses used in hydraulic dredging are often made of materials like polyurethane for flexibility and strength.
Hydrodynamic Dredging Equipment:
In hydrodynamic dredging, water injection nozzles are utilized to fluidize sediments for transport by natural currents. The hoses dredging on the sea in hydrodynamic dredging are commonly made from reinforced rubber to withstand the fluidization process. Injection hoses deliver pressurized water to efficiently fluidize sediments.
Choosing a suitable material for marine dredging hoses helps to ensure the lifespan and effectiveness of them in every specific dredging environment.
